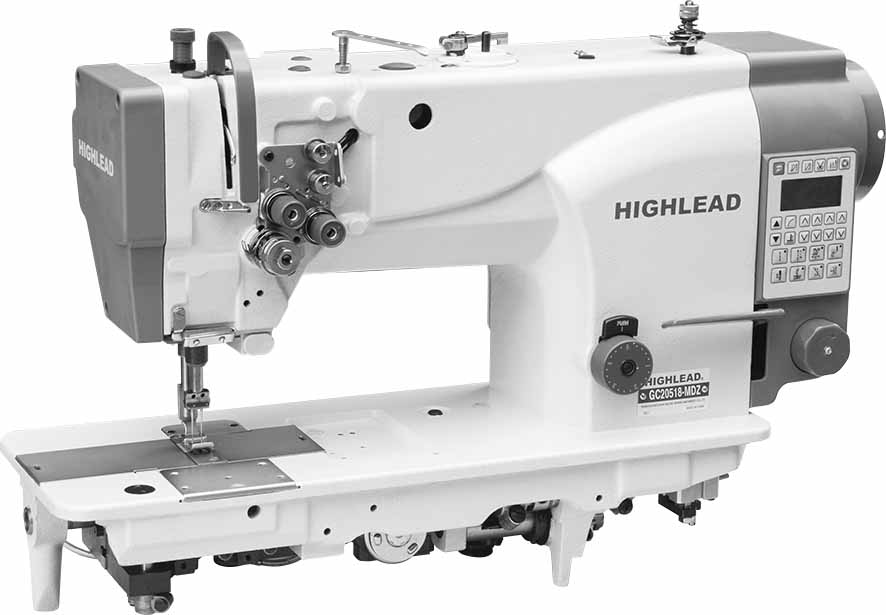

Products >GC20518-DZA series Two needle direct drive high speed needle feed lockstitcher with auto thread trimmer

Function Introduction

Sewing speed:3000~4000R.M.P
Direct servo motor drive,double needles lockstitch,two typies for thin material and heavy material
Automatic trimmer,pneumatic tension releaser,LED light,E-handwheel,pneumatic presser foot lifter
Suitable for garment,coat,uniform and beding,etc

This series is new product of Highlead brand two needle lockstitch sewing machines.With Highlead unique modern style appearance design,it is equipped with mini built-in powerful servo motor for direct drive,which features low noise,low vibration and outstanding energy saving .With two straight needles and self-lubricated vertical-axis rotating hook,it can produce two parallel lines of lockstitch.Synchro feeding of needle bar and feed dog assures even stitches and prevents materials being sewn from displacement .The rational thread trimming mechanism design guarantees reliable thread trimming performance.By built-in operating panel,electronic dial,LED light,pneumatic tension releaser and pneumatic presser foot lifter,it greatly reduces labor intensity.It is available for stitching garment,bedding,etc.

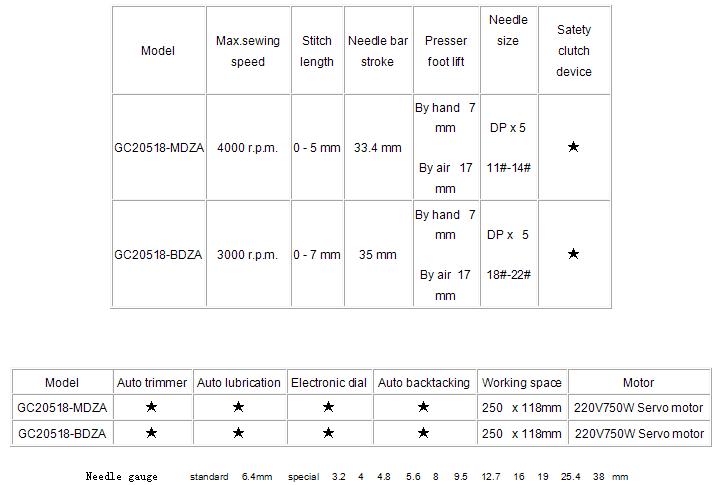

Product Parameters
